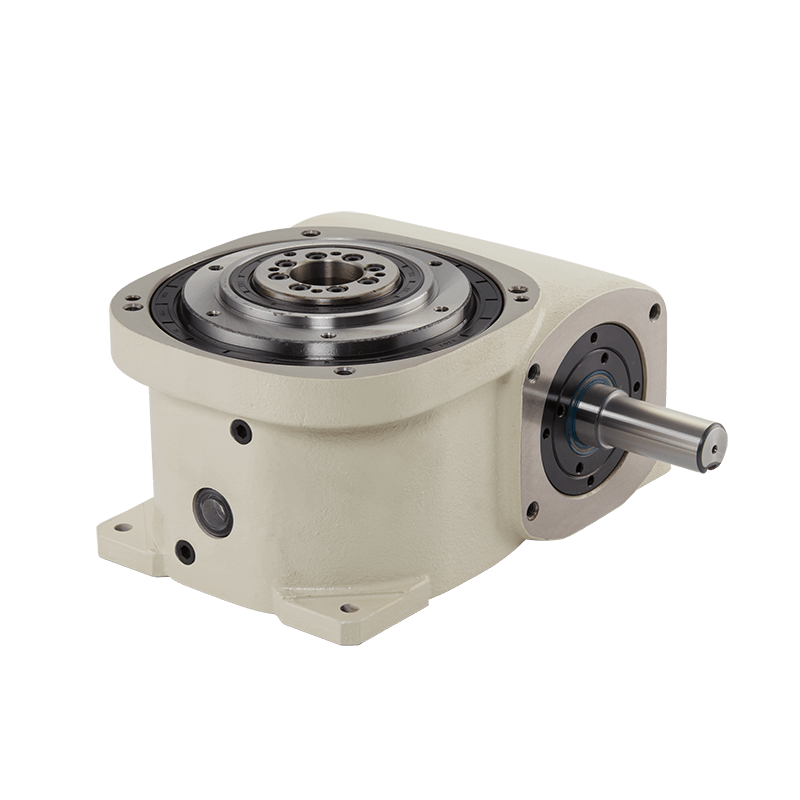

Model Name : AD

  • With the characteristics of large turret; then the advantage of force axial labor saving and high positioning accuracy
  • Suitable for force shaft measurement straight-knot hollow shaft reducer, the series can be installed vertically and inverted force.

Size of Indexing Drvies 90AD,110AD
Lead Number
Single DWELL 5,6,8,10,12,16
Double DWELL 16,20,24,32
Reduction Ratio 10,12,16
Index Angle 90°,180°,270°
Number of disk rotations
(It depends on the split, drive angle, actual load)
90AD: 400(time/min.)
110AD: 500(time/min.)
Repeatability Accuracy
