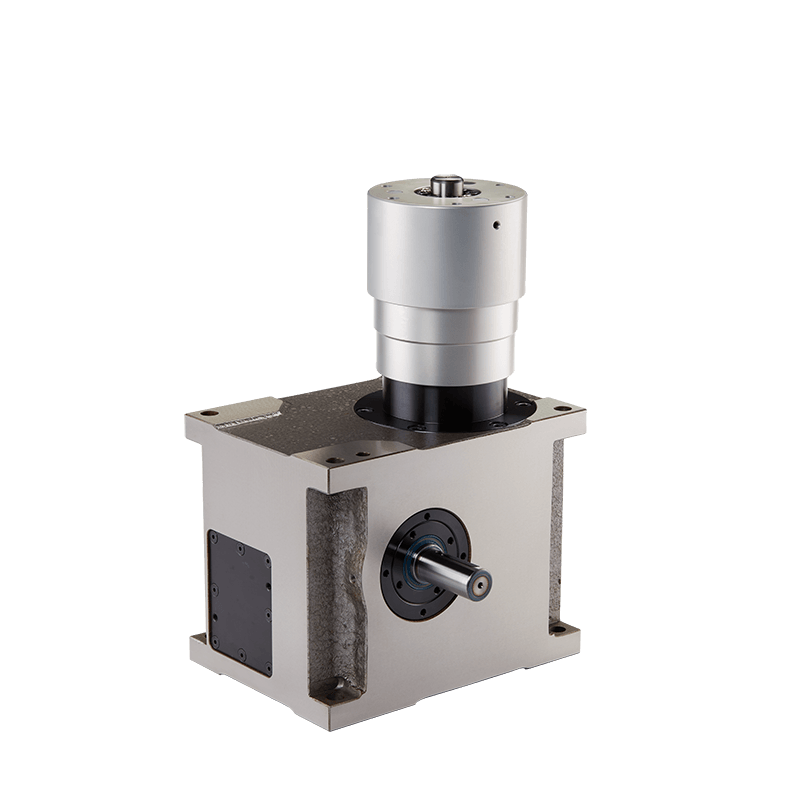

Lifting Flange Model: DSU series
Model Name ： DSU
- The output is flange design, which can be matched with large diameter disc.
- Its output axis can move up and down indepently, and the flange can be divided intermittently
| Specification | |
| Size of Indexing Drvies | 70DSU,80DSU,110DSU |
| Lead Number | |
| Single DWELL | 2,3,4,5,6,8,10,12 |
| Double DWELL | 16,20,24,30,32,36,48,60,72,120 |
| Reduction Ratio | 90°,180°,270° |
| Oscillating Angle | 1°～180° |
| Number of disk rotations (It depends on the split, drive angle, actual load) |
120(time/min.) |
| Ascending Schedule | 70DSU: MAX. 30 mm |
| 80DSU: MAX. 40 mm | |
| 110DSU: MAX. 60 mm | |
| Accuracy | |
| Repeatability Accuracy | |
