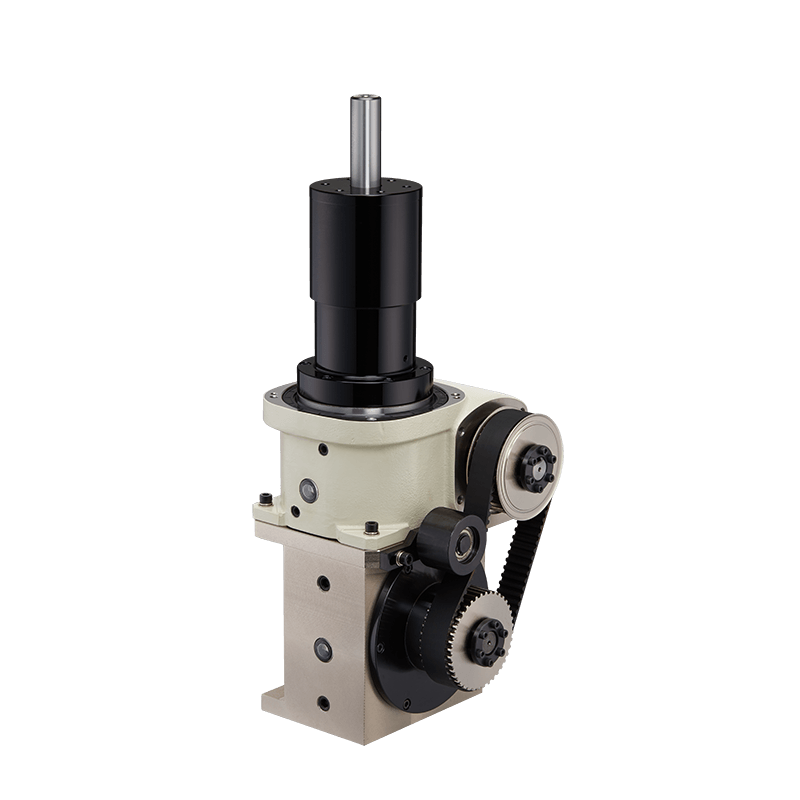

Lifting Ultra-thin Table: ADS series

Model Name ： ADS

  • It includes the characteristics of AD series, which to save the space and the advantage of high precision
  • Composite mechanism with up-down reciprocatign motion on output shaft adn intermittent rotation

Add Cart
Specification
Size of Indexing Drvies 90ADS,110ADS
Lead Number
Single DWELL 5,6,8,10,12,16
Double DWELL 16,20,24,32
Reduction Ratio 10,12,16
Index Angle 90°,180°,270°
Number of disk rotations
(It depends on the split, drive angle, actual load)		 90ADS: 400 (time/min)
110ADS: 500 (time/min)
Accuracy 　
Repeatability Accuracy
