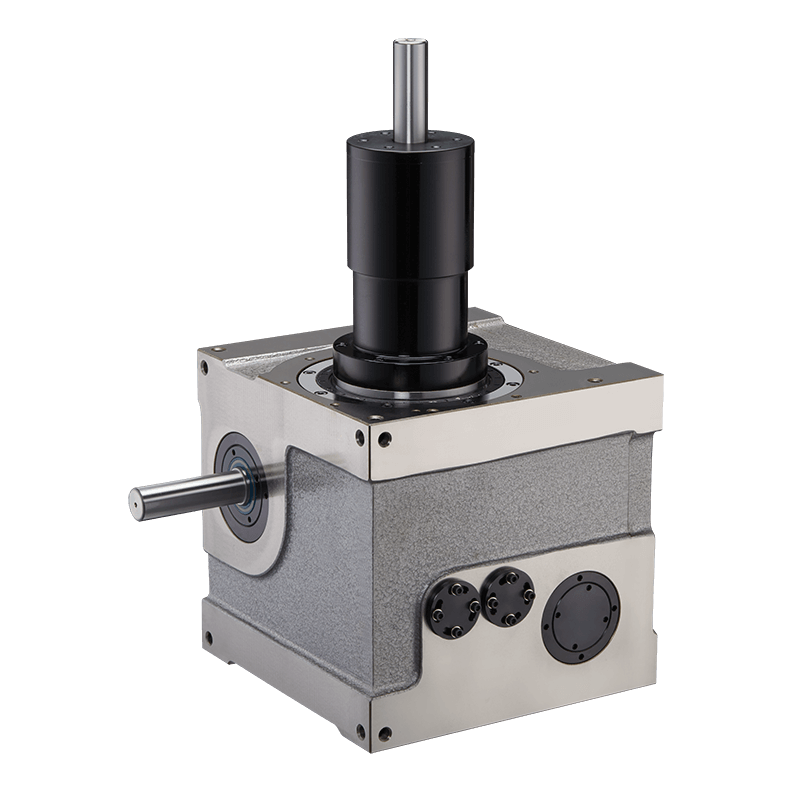

High speed vertical shaft Model: FH series

Model Name : FH

  • The combined operating for high-speed intermittment movements, the force allowed maximum speed 600 rpm
  • Excellent properties with high accuracy and high stability

Size of Indexing Drvies 80FH,110FH,125FH
Lead Number
Single DWELL 8,10,12,16
Double DWELL 20,24,32
Index Angle 90°,180°,270°
Oscillating Angle 1°~180°
Number of disk rotations
(It depends on the split, drive angle, actual load)
110FH: 600(time/min.)
125FH: 700(time/min.)
Ascending Schedule 80FH: Max. 8 mm
110FH: Max. 12 mm
125FH: Max. 20 mm
Repeatability Accuracy
