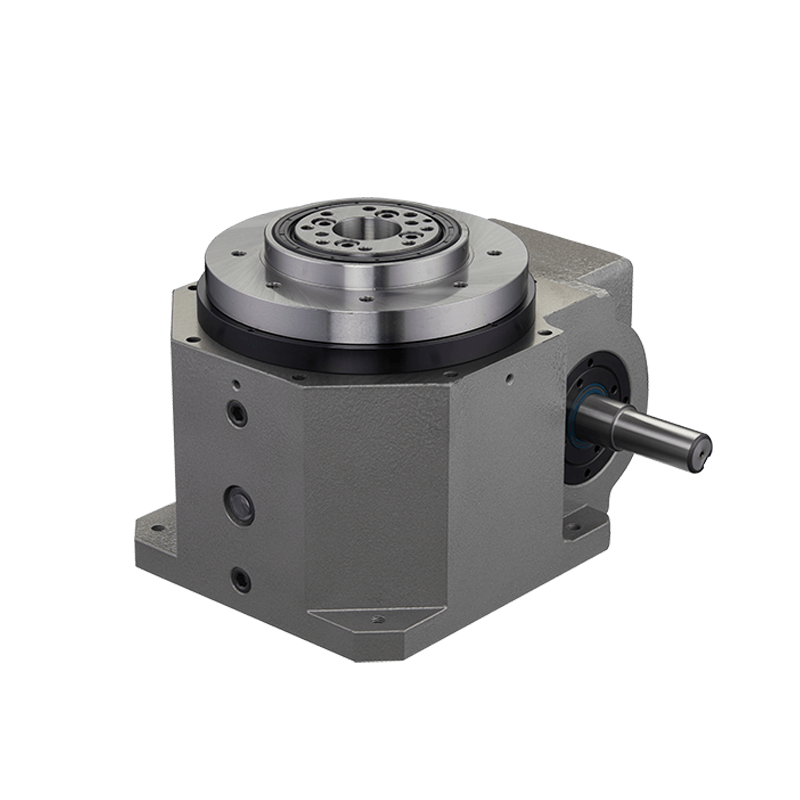

Model Name : DT

  • Only suitable for horizontal installation not vertical and inverted installation
  • Can carry a large diameter disk surfeace, suitable for large rotary disc drive occasions

Specification
Size of Indexing Drvies 80DSU,110DSU,140DSU
Lead Number
Single DWELL 2,3,4,5,6,8,10,12,16
Multi-DWELL 16,20,24,30,32,36,48,60,72,120
Reduction Ratio 10,12,16
Index Angle 90°,180°,270°,360°
Oscillating Angle 0°~180°
Number of disk rotations
(It depends on the split, drive angle, actual load)
500(time/min.)
Accuracy
Repeatability Accuracy
