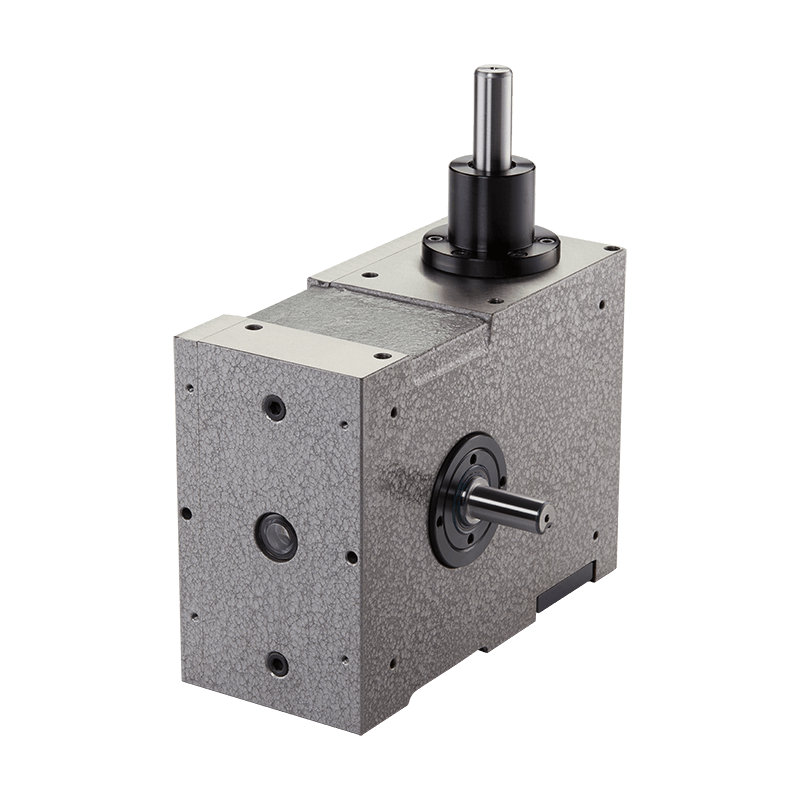

Lifting Shaft Model: FN series
Model Name ： FN
- The series of composed of reciprocating motion on the output axis, intermittent partition
- The output shaft is equipped with turntable and rocker arm and suitable for high precision and high speed material clamping
- Special linear motion mechanism designed to ensure that no jitter mandrel reciprocates
| Specification | |
| Size of Indexing Drvies | 60FN,100FN |
| Lead Number | |
| Single DWELL | 2,3,4,5,6,8,10,12 |
| Double DWELL | 16,20,24 |
| Index Angle | 90°,180°,270° |
| Oscillating Angle | 1°～180° |
| Number of disk rotations (It depends on the split, drive angle, actual load) |
200 (time/min.) |
| Ascending Schedule | 60FN: Max. 25 mm |
| 100FN: Max. 30 mm | |
| Accuracy | |
| Repeatability Accuracy | |
