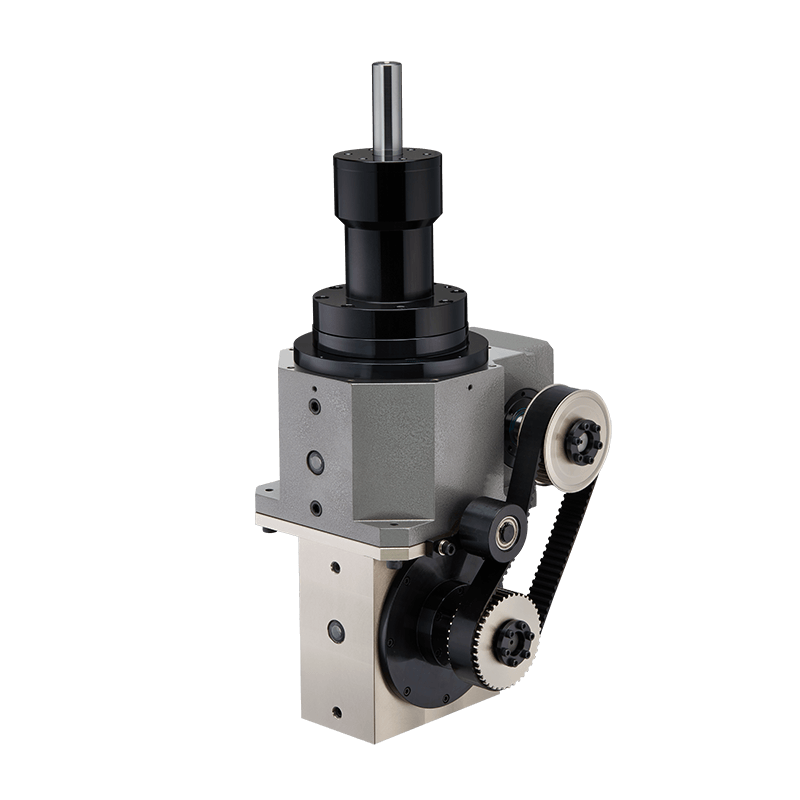

Model Name : DTS

  • It has characteristics of DT series with lifting motion
  • It can bear large diameter disk surface and is suitable for rotary disk drive with large load
  • Only suitable for horizontal installation not vertical and inverted installation

Size of Indexing Drvies 110DTS
Lead Number
Single DWELL 8,10,12,16
Double DWELL 16,20,24,30,32
Index Angle 90°,180°,270°
Number of disk rotations
(It depends on the split, drive angle, actual load)
450 (time/min)
Ascending Schedule Max.: 12 mm
Repeatability Accuracy
