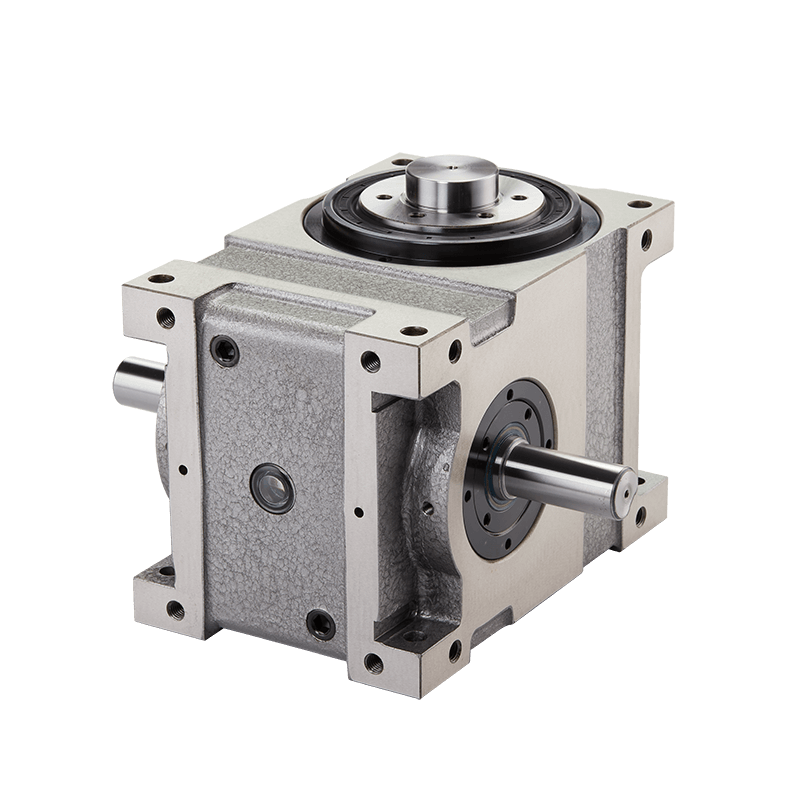

Flange Model: DF series

Model Name ： DF

  • Output shaft is designed in a flange shape with screw holes to fix the disk
  • Can bear greater loads in axis
  • It applied in direct periodic delivery device

Add Cart
Specification
Size of Indexing Drvies 45DF,60DF,70DF,80DF,110DF,140DF,180DF
Lead Number
Single DWELL 2,3,4,5,6,8,10,12
Multi-DWELL 16,20,24,30,32,36,48,60,72,80,90,120
Reduction Ratio 8,10,12
Index Angle 90°,180°,270°,360°
Oscillating Angle -0°-120°
-180° (Optional)
Number of disk rotations
(It depends on the split, drive angle, actual load)		 700 (time/min)
Accuracy 　
Repeatability Accuracy
